Warp knitted biaxial polyester geogrid

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 10000 Square Meter
Delivery Time: 7 Days

Basic Info


Model No.: 50-50KN,60-60KN,70-70KN,80-80KN,90-90KN,100-100KN, 105-105KN,115-115KN,120-120KN,150-150KN,200-200KN

Material: Polyester

1-6 Meters: 20-1200KN


Additional Info


Packaging: PE BAGS+COLORED TAPES

Productivity: 100000SQM PER DAY

Brand: Lianyi Geosynthetics

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Certificate: ISO CE SGI TRI SGS IECA IGS


Product Description

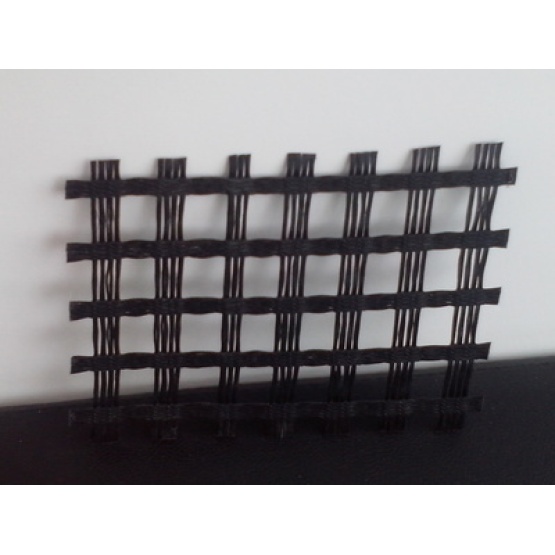

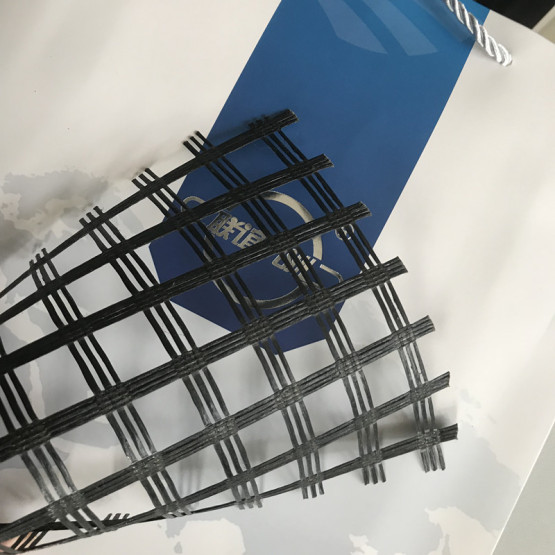

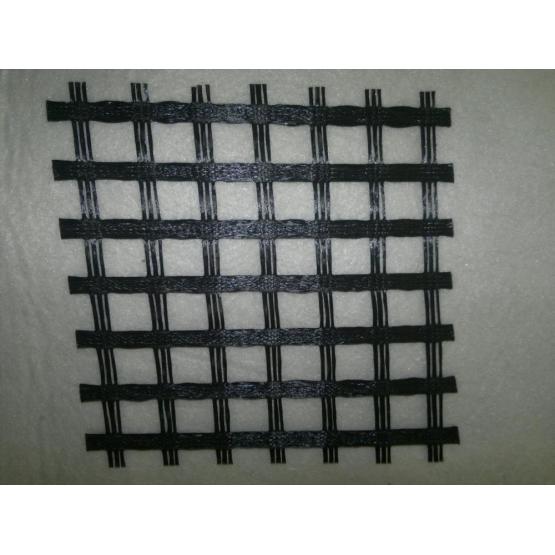

                                                               Warp knitted biaxial polyester geogrid


Product Introduction


Polyester (PET) type geogrids are made from a woven matrix of high tenacity polyester fibres that are coated with a protective polymer coating. The polyester fibres are oriented in one principle strength direction. Geogrid strengths can be very high. The strength of a geogrid allows positive reinforcement of embankments, steep slopes, retaining walls and other vertical soil structures. Geogrids interlock with the soil providing long term reinforcement and are the most cost effective method of creating additional horizontal space. Polyester geogrids have extremely good long term creep performance.


Product Features


The warp knitted polyester geogrid has the characteristics of  high intension, low elongation ratio, erosion-resistant, aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on.


Product Function


Reinforcing the embankment slope.

Retaining walls reinforced to enhance the overall strength.

Reinforcement, segregation of dam and river in water conservancy projects reinforce and the soft soil base, strength their projection and improve the bearing capacity and stability of the foundation.

The soft soil roadbeds of road, railway and other municipal roads are reinforced which can effectively improve the strength of subgrade, delaying  reflection cracks in the road.



Specification



Tensile
Strength
(KN)

Warp

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200



Weft

≥30

≥50

≥60

≥80

≥100

≥120

≥150

≥200

Elogation

Polyester

13%

13%

13%

13%

13%

13%

13%

13%

Mesh size(mm)

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

12.7×12.7
25.4×25.4
40×40
50×50

Width(m)

1~6

1~6

1~6

1~6

1~6

1~6

1~6

1~6

Length(m)

50~300

50~300

50~300

50~300

50~300

50~300

50~300

50~300

Temperature
Resistant ()

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

-100~280

Resin
Content (%)

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

≤30%

resistance to installation damage

%SC/%SW/%GP

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

95/93/90

resistance to long term degradation  %

100

100

100

100

100

100

100

100

Design life   (years)

150

150

150

150

150

150

150

150

Glue Type

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage

PVC
SBR
soakage



Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
