Product Description

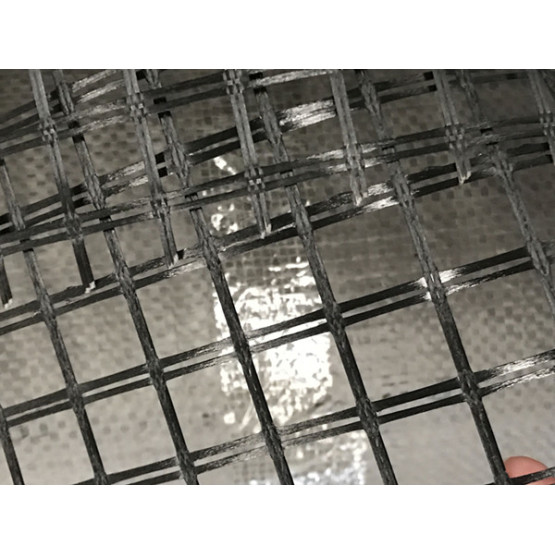

Knitted and PVC Coated Polyester Geogrids
Product Introduction
Warp Knitted polyester geogrids are used in a wide variety of soil reinforcement applications including asphalt pavement reinforcement, internally reinforced soil walls, segmental retaining wall reinforcement, steep reinforced slopes, and reinforcement in a variety of landfill applications including potential voids bridging and veneer stability.
Product Features
The warp knitted polyester geogrid has the characteristics of high intension, low elongation ratio, erosion-resistant, aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on.
Product Function
Reinforcing the embankment slope.
Retaining walls reinforced to enhance the overall strength.
Reinforcement, segregation of dam and river in water conservancy projects reinforce and the soft soil base, strength their projection and improve the bearing capacity and stability of the foundation.
The soft soil roadbeds of road, railway and other municipal roads are reinforced which can effectively improve the strength of subgrade, delaying reflection cracks in the road.
Specification
|
Tensile
Strength
(KN)
|
Warp
|
≥30
|
≥50
|
≥60
|
≥80
|
≥100
|
≥120
|
≥150
|
≥200
|
|
|
Weft
|
≥30
|
≥50
|
≥60
|
≥80
|
≥100
|
≥120
|
≥150
|
≥200
|
|
Elogation
|
Polyester
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
|
Mesh size(mm)
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
|
Width(m)
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
|
Length(m)
|
50~300
|
50~300
|
50~300
|
50~300
|
50~300
|
50~300
|
50~300
|
50~300
|
|
Temperature
Resistant (℃)
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
|
Resin
Content (%)
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
|
resistance to installation damage
%SC/%SW/%GP
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
|
resistance to long term degradation %
|
100
|
100
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Design life (years)
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
|
Glue Type
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
