Product Description

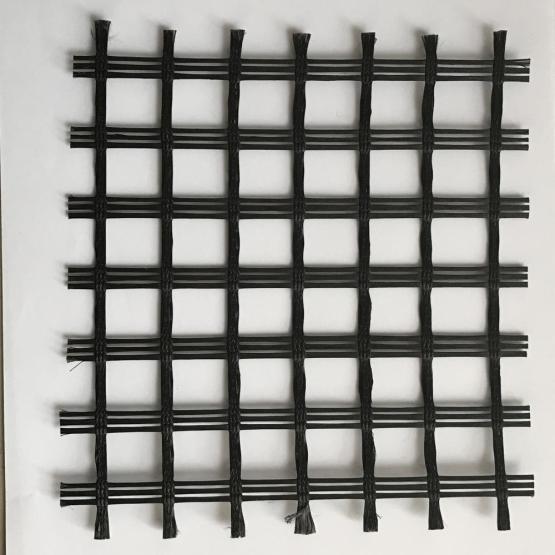

Knitted and Polymeric Coated Polyester Geogrids
Product Introduction
polymeric coated polyester geogrids engineered for demanding soil applications. Superior grades of high tenacity, high molecular weight and low carboxyl end group polyester yarns are formed into a grid structure using a highly sophisticated warp knitting technology and coating technology. The product is ideal for the reinforcement of soils and other granular materials for a variety of applications.
Product Name: PVC Coated PET Biaxial Geogrid
Main Material: Polyester yarn
Roll Width:1-6m
Roll Length:20-200m
Warp Knitted PET Geogrid is a new kind of favorable earthwork base material to strength the road surface and road, which composed of polyester filaments coated with an inorganic sizing agent. These polyester products possess the advantage of high tensile strength in the warp and weft directions, low elongation, excellent temperature range, and good anti-aging and alkali-resistance.
Product Features
The warp knitted polyester geogrid has the characteristics of high intension, low elongation ratio, erosion-resistant, aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on.
Product Function
Reinforcing the embankment slope.
Retaining walls reinforced to enhance the overall strength.
Reinforcement, segregation of dam and river in water conservancy projects reinforce and the soft soil base, strength their projection and improve the bearing capacity and stability of the foundation.
The soft soil roadbeds of road, railway and other municipal roads are reinforced which can effectively improve the strength of subgrade, delaying reflection cracks in the road.
Specification
|
Tensile
Strength
(KN)
|
Warp
|
≥30
|
≥50
|
≥60
|
≥80
|
≥100
|
≥120
|
≥150
|
≥200
|
|
Weft
|
≥30
|
≥50
|
≥60
|
≥80
|
≥100
|
≥120
|
≥150
|
≥200
|
|
Elogation
|
Polyester
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
|
Mesh size(mm)
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
|
Width(m)
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
|
Length(m)
|
50~300
|
50~300
|
50~300
|
50~300
|
50~300
|
50~300
|
50~300
|
50~300
|
|
Temperature
Resistant (℃)
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
|
Resin
Content (%)
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
|
resistance to installation damage
%SC/%SW/%GP
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
|
resistance to long term degradation %
|
100
|
100
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Design life (years)
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
|
Glue Type
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
PVC
SBR
soakage
|
|
Product model
|
PET
60/30
|
PET
80/30
|
PET
100/30
|
PET
150/30
|
PET
180/30
|
PET
250/30
|
PET
300/30
|
|
Project
|
|
|
|
|
|
|
|
|
Material
|
High tenacity polyester
|
High tenacity polyester
|
High tenacity polyester
|
High tenacity polyester
|
High tenacity polyester
|
High tenacity polyester
|
High tenacity polyester
|
|
After treatment
|
PVC soakage
|
PVC soakage
|
PVC soakage
|
PVC soakage
|
PVC soakage
|
PVC soakage
|
PVC soakage
|
|
Tensile
strength(KN/m)
|
Longitudinal
|
>=60
|
>=80
|
>=100
|
>=150
|
>=180
|
>=250
|
>=300
|
|
|
Transverse
|
>=30
|
>=30
|
>=30
|
>=30
|
>=30
|
>=30
|
>=30
|
|
Elogation %
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
﹤13%
|
|
Gridding size
(mmXmm)
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
12.7×12.7
25.4×25.4
40×40
50×50
|
|
Temperature
Resistant (℃)
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
-100~280
|
|
Resin
Content (%)
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
≤30%
|
|
resistance to installation damage
%SC/%SW/%GP
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
95/93/90
|
|
resistance to long term degradation %
|
100
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Design life (years)
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
|
Breadth(m)
|
2-6
|
2-6
|
2-6
|
2-6
|
2-6
|
2-6
|
2-6
|
|
Remark
|
Our company can make products based on the different requirement from customers. The largest strength could be 1000KN/m.
|
