HDPE Plastic Geocells in Construction Word
Product Description

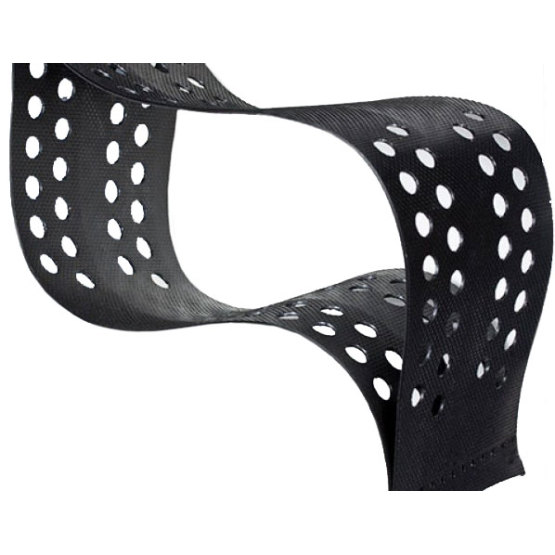

Geocell is made of a new type of high-strength geosynthetics, which is popular with both domestic and abroad, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction, the geocell can be pull into a network and launched into a three-dimensional honeycomb grid. As it filled in soil, macadam, concrete or other granular materials, constituted to be a construction, which has strong sidewise restraint and high rate of stiffness.
Product Application
1. To stable the roadbed of railway.
2. To stable the roadbed of highroad.
3. To bear the load of dike or retaining wall.
4. To the improvement of shallow riverway.
5. To support the pipeline and sewer.
6. For the prevention of landslide by useing geocell as a heavy-duty hybrid force retaining wall.
7. To be used as independent wall, wharf and breakwater, etc.
8. For the desert, beaches and the riverbed, the river bank`s regulation.
Specification
|
Material Properties
|
Unit
|
|
|
|
|
Test Method
|
|
Cell Depth
|
mm
|
75
|
100
|
150
|
200
|
|
|
Polymer Density
|
g/cm3
|
0.935-0.965
|
ASTM D 1505
|
|
Enviromental Stress Crack Resistance
|
Hours
|
＞400
|
ASTM D 5397
|
|
Enviromental Stress Crack Resistance
|
Hours
|
6000
|
ASTM D 1693
|
|
Carbon Black Content
|
%
|
＞1.5
|
ASTM D 1603
|
|
Nominal Sheet Thickness Before Texturing
|
mm
|
1.27 -5%,+10%
|
ASTM D 5199
|
|
Nominal Sheet Thickness After Texturing
|
mm
|
1.52-5%,+10%
|
ASTM D 5199
|
|
Strip Puncture Resistance
|
N
|
450
|
ASTM D 4833
|
|
Seam Peel Strength
|
N
|
1065
|
1420
|
2130
|
2840
|
EN ISO13426-1B
|
|
Seam Efficiency
|
%
|
100
|
GRI-GS13
|
|
Nominal Expanded Cell Size (width x length)
|
mm
|
320x287,475x508 etc
|
|
|
Nominal Expanded Panel Size (width x length)
|
m
|
2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44
|
|
