Product Description

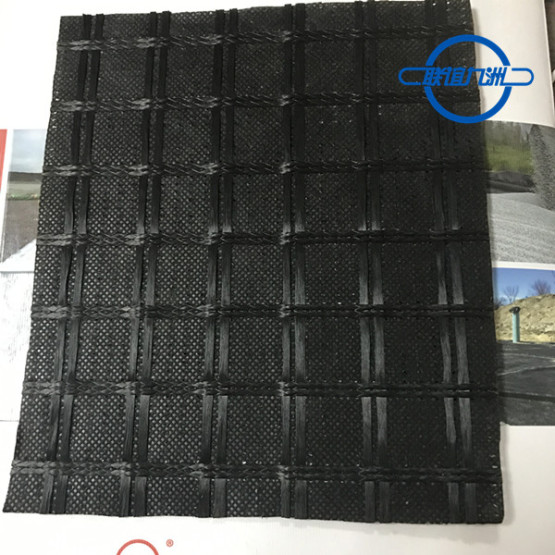

Fiberglass Geogrid Composite With Nonwoven Geotextile
Product Introduction
Asphalt Reinforcement Geocomposite is a new composite geosynthetic material which is made of fiberglass yarns or polyester yarns and geotextile and sewing together by Germany made warp-knitting machine.ck, postponement reduction reflection crack.
Product Function
Fiberglass Geogrid Composite With Nonwoven Geotextile can widely apply in the water conservation, the municipal administration, the building, the transportation, the subway, the tunnel, the environmental protection and so on.
Specification
|
Material Properties
|
Unit
|
|
|
|
Test Method
|
|
Unit Weight
|
g/m2
|
270+/-10
|
500+/-20
|
520+/-20
|
ASTM D-5261
|
|
Aperture Size
|
mm
|
25.4x25.4 40x40
|
Measured
|
|
Open Area of Grid
|
%
|
＞80
|
CWO 22125
|
|
Tensile Strength (MD)
|
KN/m
|
50
|
100
|
120
|
ASTM D-6637
|
|
Tensile Strength (CMD)
|
KN/m
|
50
|
100
|
120
|
ASTM D-6637
|
|
Elongation at Break
|
%
|
<10
|
ASTM D-6637
|
|
Shrinkage @ 375° F for 15 min
|
%
|
<1
|
|
|
Melting Point
|
° C
|
255
|
ASTM D-276
|
|
Roll Size
|
m
|
2x100m,2.5x100m,3.95x100m,5x100m
|
|
