Product Description

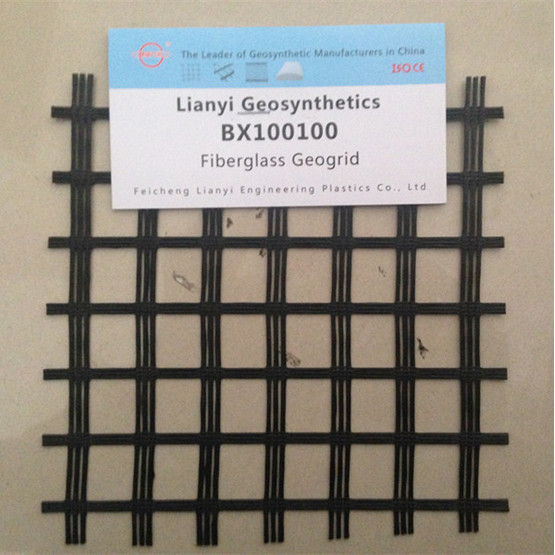

Fiber Glass Biaxial Geogrid
Product Feature
Fiberglass geogrids are knitted of high strength fiberglass yarns.The yarns are coated with a bituminous material which ensures proper adhesion to the asphalt layers.
Fiberglass geogrids are used to control the cracking of airport runways,taxiways,roads,bridges,jointed concrete carriageways,parking lots,etc.
Excellent heat resistance and minimal shrinkage at high temperature of more than 200°C
Product Function
1. It reinforce old asphalt concrete road surface and asphalt layer, and prevents damage;
2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction.
3. It is used in road expansion and improvment project and crack caused by old and new combination position and uneven sedimentation;
4. It is used in soft soil base reinforcement treatment , is favorable for soft soil water separation and concretion,restrains sedimentation effectivly,distributes stress uniformly and improve overall strength of road base;
5. It is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation crack reflection.
Specification
|
Performance/Specification
|
GG25-25
|
GG30-30
|
GG40-40
|
GG50-50
|
GG80-80
|
GG100-100
|
GG120-120
|
|
Intensity (KN/m)
|
Longitudinal
|
≥25
|
≥30
|
≥40
|
≥50
|
≥80
|
≥100
|
≥120
|
|
|
Horizontal
|
≥25
|
≥30
|
≥40
|
≥50
|
≥80
|
≥100
|
≥120
|
|
Break elongation ratio (%)
|
Longitudinal
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
|
|
Horizontal
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
|
Mesh size (mm×mm)
|
12~50
|
12~50
|
12~50
|
12~50
|
12~50
|
12~50
|
12~50
|
|
Breadth (m)
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
1~6
|
Our Main Products:
Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
